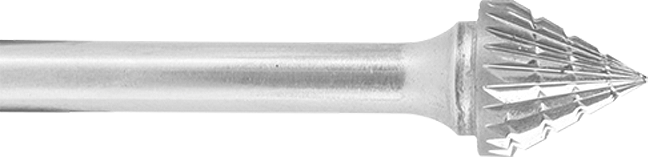

Conique 60° forme J
|
3 mm
Tige
|
Dimensions mm | Numéro d’article | |||||
|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | |
| 3.0 | 2.5 | 3.0 | 38.0 |
MONOBLOC |
BJ24900-3N | BJ24903-3K | |
|
6 mm
Tige
|
Dimensions mm | Numéro d’article | |||||
|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | |
| 6.0 | 4.0 | 6.0 | 50.0 |
MONOBLOC |
BJ24675-6N | BJ24678-6K | |
| 9.6 | 8.0 | 6.0 | 56.0 |
BRASÉ |
BJ24700-6N | BJ24703-6K | |
| 12.7 | 11.0 | 6.0 | 59.0 |
BRASÉ |
BJ24725-6N | BJ24728-6K | |
| 16.0 | 14.5 | 6.0 | 63.0 |
BRASÉ |
BJ24750-6N | BJ24753-6K | |
| 19.0 | 17.5 | 6.0 | 65.0 |
BRASÉ |
BJ24800-6N | BJ24803-6K | |
| 25.0 | 24.5 | 6.0 | 70.0 |
BRASÉ |
BJ24850-6N | BJ24853-6K | |
|
8 mm
Tige
|
Dimensions mm | Numéro d’article | |||||
|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | |
| 12.7 | 11.0 | 8.0 | 59.0 | BRASÉ | BJ24737-8N | BJ24740-8K | |
| 16.0 | 14.5 | 8.0 | 63.0 | BRASÉ | BJ24775-8N | BJ24778-8K | |
| 19.0 | 17.5 | 8.0 | 65.0 | BRASÉ | BJ24825-8N | BJ24828-8K | |
| 25.0 | 24.5 | 8.0 | 70.0 | BRASÉ | BJ24875-8N | BJ24878-8K | |
