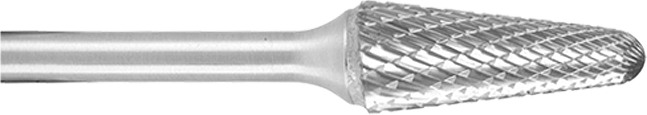

Cône bout rond forme L
|
3 mm
Tige
|
Dimensions mm | Numéro d’article | |||||||
|---|---|---|---|---|---|---|---|---|---|

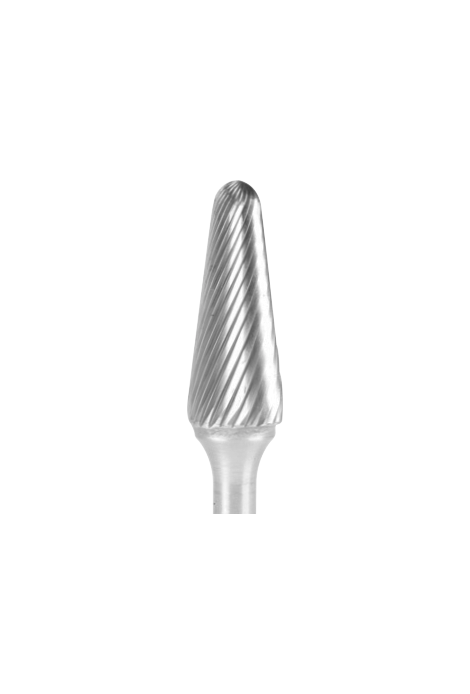

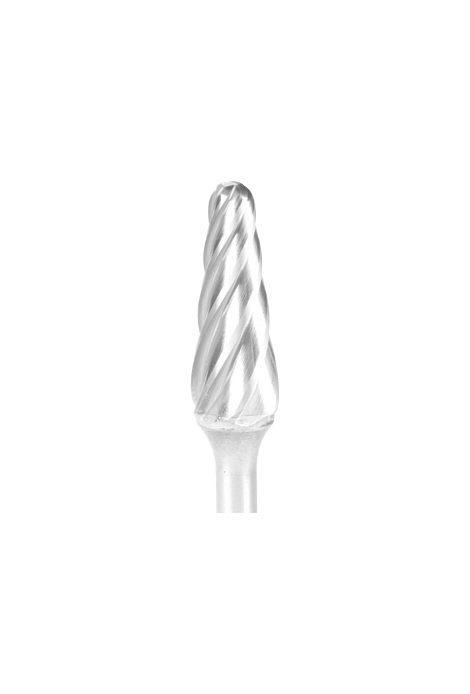

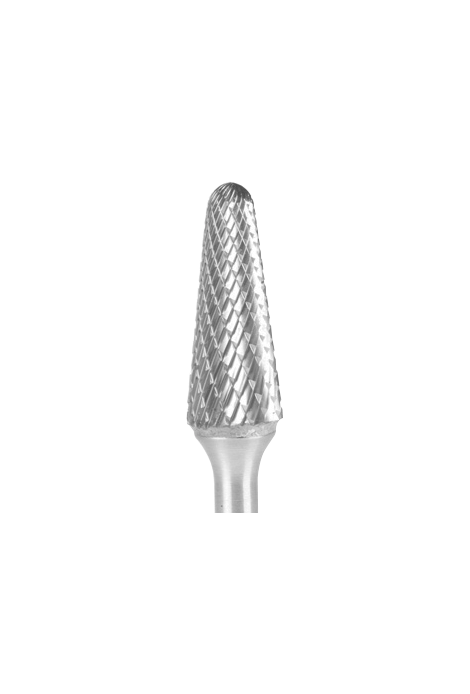

| d1 | l1 | d2 | l2 | Type | Angle | Coupe 3 | Coupe 6 | Coupe 1 | |
| 3.0 | 10.0 | 3.0 | 38.0 | MONOBLOC | 10° | BL25400-3N | BL25403-3K | – | |
| 3.0 | 14.0 | 3.0 | 38.0 | MONOBLOC | 8° | BL25402-3N | BL25404-3K | BL25455-3A | |
| 5.0 | 12.7 | 3.0 | 38.0 | MONOBLOC | 14° | BL25450-3N | BL25453-3K | – | |
| 6.3 | 15.8 | 3.0 | 48.0 |
MONOBLOC |
22° | BL25451-3N | BL25454-3K | BL25456-3A | |
|
6 mm
Tige
|
Dimensions mm | Numéro d’article | |||||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Angle | Coupe 3 | Coupe 6 | Coupe 1 | |
| 6.0 | 18.0 | 6.0 | 50.0 |
MONOBLOC |
14° | BL25175-6N | BL25178-6K | BL29061-6A | |
| 8.0 | 25.4 | 6.0 | 70.0 |
BRASÉ |
14° | BL25200-6N | BL25203-6K | BL29049-6A | |
| 10.0 | 20.0 | 6.0 | 65.0 |
BRASÉ |
14° | BL25202-6N | BL25204-6K | BL29076-6A | |
| 9.6 | 30.0 | 6.0 | 76.0 |
BRASÉ |
14° | BL25225-6N | BL25228-6K | BL29070-6A | |
| 12.0 | 25.0 | 6.0 | 70.0 |
BRASÉ |
14° | BL25227-6N | BL25229-6K | – | |
| 12.7 | 32.0 | 6.0 | 77.0 |
BRASÉ |
14° | BL25250-6N | BL25253-6K | BL29072-6A | |
| 16.0 | 33.0 | 6.0 | 78.0 |
BRASÉ |
14° | BL25275-6N | BL25278-6K | BL29074-6A | |
| 19.0 | 41.0 | 6.0 | 86.0 |
BRASÉ |
14° | BL25350-6N | BL25353-6K | – | |
|
8 mm
Tige
|
Dimensions mm | Numéro d’article | |||||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Angle | Coupe 3 | Coupe 6 | Coupe 1 | |
| 12.7 | 32.0 | 8.0 | 70.0 | BRASÉ | 14° | BL25262-8N | BL25265-8K | BL29073-8A | |
| 16.0 | 33.0 | 8.0 | 78.0 | BRASÉ | 14° | BL25287-8N | BL25290-8K | BL29075-8A | |
| 19.0 | 41.0 | 8.0 | 86.0 | BRASÉ | 14° | BL25375-8N | BL25378-8K | – | |
