Cylindrique bout rond forme C
|
3 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|

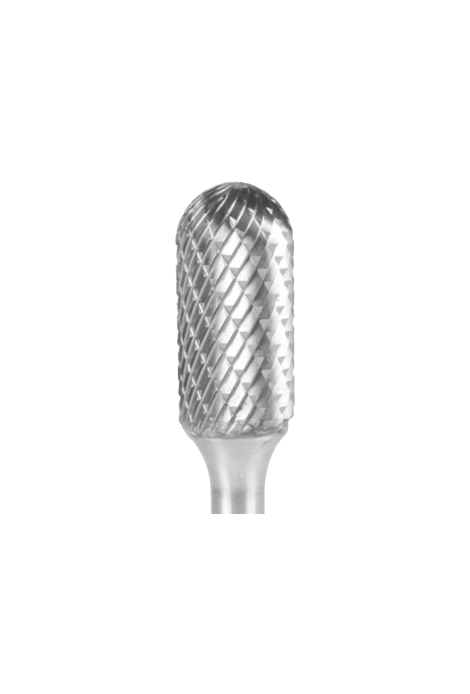

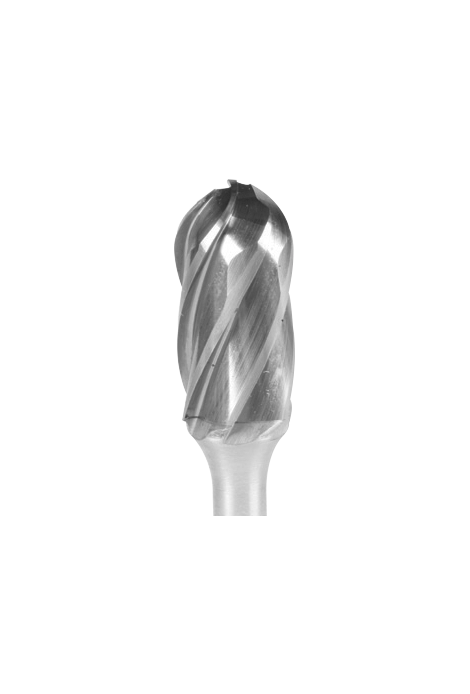

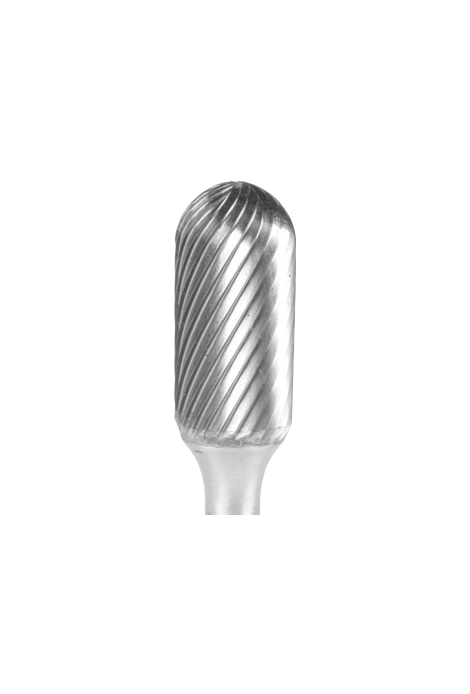

| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 2.0 | 11.0 | 3.0 | 38.0 | MONOBLOC | BC22249-3N | BC22248-3K | – | |
| 2.5 | 11.0 | 3.0 | 38.0 | MONOBLOC | BC22250-3N | BC22253-3K | – | |
| 3.0 | 14.0 | 3.0 | 38.0 | MONOBLOC | BC22275-3N | BC22278-3K | BC22306-3A | |
| 5.0 | 12.7 | 3.0 | 38.0 | MONOBLOC | BC22350-3N | BC22353-3K | – | |
| 6.3 | 12.7 | 3.0 | 45.0 |
BRASÉ |
BC22300-3N | BC22303-3K | BC22307-3A | |
|
6 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 3.0 | 14.0 | 6.0 | 50.0 | MONOBLOC | BC22050-6N | BC22053-6K | – | |
| 4.0 | 14.0 | 6.0 | 50.0 | MONOBLOC | BC22100-6N | BC22103-6K | – | |
| 5.0 | 16.0 | 6.0 | 50.0 | MONOBLOC | BC22125-6N | BC22128-6K | – | |
| 6.0 | 18.0 | 6.0 | 50.0 | MONOBLOC | BC21700-6N | BC21703-6K | BC29024-6A | |
| 6.0 | 25.0 | 6.0 | 50.0 | MONOBLOC | BC21725-6N | BC21728-6K | – | |
| 8.0 | 19.0 | 6.0 | 64.0 |
BRASÉ |
BC21750-6N | BC21753-6K | BC29025-6A | |
| 9.6 | 19.0 | 6.0 | 64.0 |
BRASÉ |
BC21775-6N | BC21778-6K | BC29026-6A | |
| 9.6 | 25.0 | 6.0 | 70.0 |
BRASÉ |
BC21800-6N | BC21803-6K | – | |
| 11.0 | 25.0 | 6.0 | 70.0 |
BRASÉ |
BC21850-6N | BC21853-6K | – | |
| 12.0 | 10.0 | 6.0 | 54.0 |
BRASÉ |
BC21851-6N | BC21854-6K | – | |
| 12.7 | 25.0 | 6.0 | 70.0 |
BRASÉ |
BC21875-6N | BC21878-6K | BC29028-6A | |
| 16.0 | 25.0 | 6.0 | 70.0 |
BRASÉ |
BC21900-6N | BC21903-6K | BC29030-6A | |
| 19.0 | 25.0 | 6.0 | 70.0 |
BRASÉ |
BC21950-6N | BC21953-6K | BC29032-6A | |
| 25.0 | 25.0 | 6.0 | 70.0 |
BRASÉ |
BC22000-6N | BC22003-6K | – | |
|
8 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 12.7 | 25.0 | 8.0 | 70.0 | BRASÉ | BC21887-8N | BC21890-8K | BC29029-8A | |
| 16.0 | 25.0 | 8.0 | 70.0 | BRASÉ | BC21925-8N | BC21928-8K | BC29030-8A | |
| 19.0 | 25.0 | 8.0 | 70.0 | BRASÉ | BC21975-8N | BC21978-8K | BC29034-8A | |
| 25.0 | 25.0 | 8.0 | 70.0 | BRASÉ | BC22025-8N | BC22028-8K | – | |
