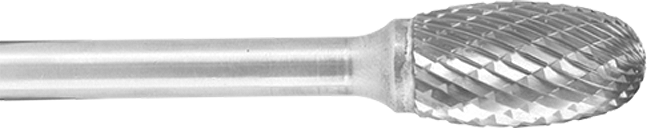

Ovale forme E
|
3 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 3.0 | 6.0 | 3.0 | 38.0 | MONOBLOC | BE23150-3N | BE23153-3K | BE23179-3A | |
| 5.0 | 8.0 | 3.0 | 38.0 | MONOBLOC | BE23200-3N | BE23203-3K | – | |
| 6.3 | 9.5 | 3.0 | 42.0 |
BRASÉ |
BE23175-3N | BE23178-3K | BE23181-3A | |
|
6 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 6.0 | 10.0 | 6.0 | 50.0 | MONOBLOC | BE22950-6N | BE22953-6K | BE29046-6A | |
| 8.0 | 15.0 | 6.0 | 60.0 |
BRASÉ |
BE22952-6N | BE22954-6K | BE29056-6A | |
| 9.6 | 16.0 | 6.0 | 60.0 |
BRASÉ |
BE22975-6N | BE22978-6K | BE29048-6A | |
| 12.7 | 22.0 | 6.0 | 67.0 |
BRASÉ |
BE23000-6N | BE23003-6K | BE29050-6A | |
| 16.0 | 25.0 | 6.0 | 70.0 |
BRASÉ |
BE23025-6N | BE23028-6K | BE29052-6A | |
| 19.0 | 25.0 | 6.0 | 70.0 |
BRASÉ |
BE23075-6N | BE23078-6K | BE29054-6A | |
|
8 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 12.7 | 22.0 | 8.0 | 67.0 | BRASÉ | BE23012-8N | BE23015-8K | BE29051-8A | |
| 16.0 | 25.0 | 8.0 | 70.0 | BRASÉ | BE23050-8N | BE23053-8K | BE29053-8A | |
| 19.0 | 25.0 | 8.0 | 70.0 | BRASÉ | BE23100-8N | BE23103-8K | BE29056-8A | |
