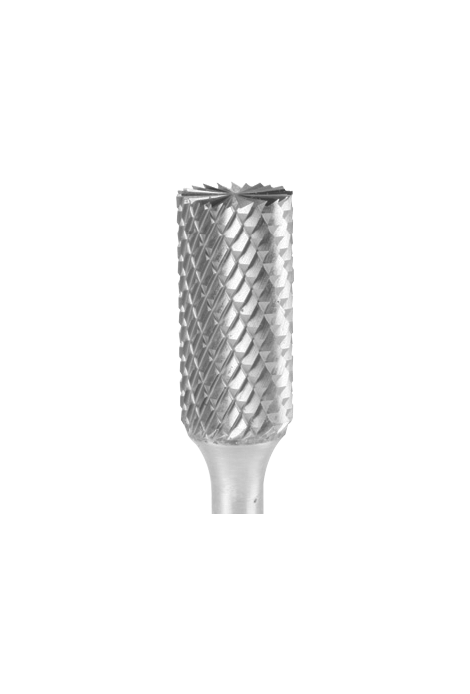

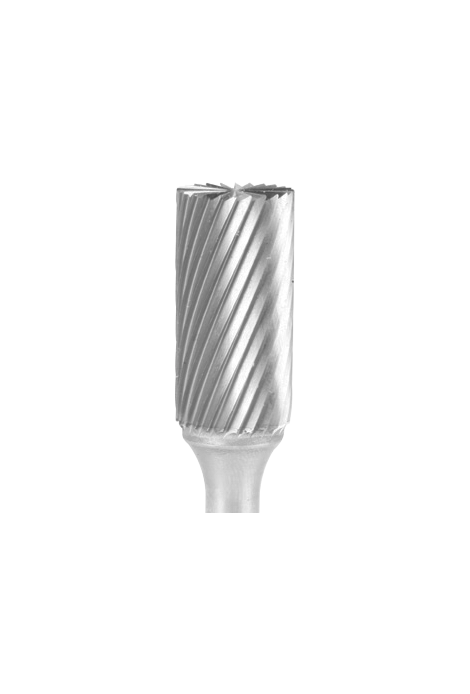

Zylinder mit Stirnverz. Form B
|
3 mm
Schaft
|
Abmessung | Art. Nr. | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Art | Standardverzahnung | Kreuzverzahnung | Grobe Verzahnung | |
| 1.5 | 6.0 | 3.0 | 38.0 | VHM | BB21450-3N | BB21453-3K | – | |
| 2.0 | 11.0 | 3.0 | 38.0 | VHM | BB21451-3N | BB21452-3K | – | |
| 2.5 | 12.0 | 3.0 | 38.0 | VHM | BB21475-3N | BB21478-3K | – | |
| 3.0 | 14.0 | 3.0 | 38.0 | VHM | BB21500-3N | BB21503-3K | BB25512-3A | |
| 5.0 | 12.7 | 3.0 | 38.0 | VHM | BB21506-3N | BB21509-3K | – | |
| 6.3 | 12.7 | 3.0 | 45.0 |
GELÖTET |
BB21508-3N | BB25511-3K | BB25513-3A | |
|
6 mm
Schaft
|
Abmessung | Art. Nr. | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Art | Standardverzahnung | Kreuzverzahnung | Grobe Verzahnung | |
| 3.0 | 14.0 | 6.0 | 50.0 | VHM | BB21250-6N | BB21253-6K | – | |
| 4.0 | 14.0 | 6.0 | 50.0 | VHM | BB21300-6N | BB21303-6K | – | |
| 5.0 | 16.0 | 6.0 | 50.0 | VHM | BB21325-6N | BB21328-6K | – | |
| 6.0 | 18.0 | 6.0 | 50.0 | VHM | BB20850-6N | BB20853-6K | BB29012-6A | |
| 6.0 | 25.0 | 6.0 | 50.0 | VHM | BB20875-6N | BB20873-6K | – | |
| 8.0 | 19.0 | 6.0 | 64.0 |
GELÖTET |
BB20900-6N | BB20903-6K | BB29013-6A | |
| 9.6 | 19.0 | 6.0 | 64.0 |
GELÖTET |
BB20925-6N | BB20928-6K | BB29014-6A | |
| 9.6 | 25.0 | 6.0 | 70.0 |
GELÖTET |
BB20950-6N | BB20953-6K | – | |
| 11.0 | 25.0 | 6.0 | 70.0 |
GELÖTET |
BB21000-6N | BB21003-6K | – | |
| 12.7 | 25.0 | 6.0 | 70.0 |
GELÖTET |
BB21025-6N | BB21028-6K | BB29016-6A | |
| 16.0 | 25.0 | 6.0 | 70.0 |
GELÖTET |
BB21050-6N | BB21053-6K | BB29018-6A | |
| 19.0 | 25.0 | 6.0 | 70.0 |
GELÖTET |
BB21100-6N | BB21103-6K | BB29020-6A | |
| 25.0 | 25.0 | 6.0 | 70.0 |
GELÖTET |
BB21200-6N | BB21203-6K | BB29021-6A | |
|
8 mm
Schaft
|
Abmessung | Art. Nr. | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Art | Standardverzahnung | Kreuzverzahnung | Grobe Verzahnung | |
| 12.7 | 25.0 | 8.0 | 70.0 | GELÖTET | BB21037-8N | BB21040-8K | BB29017-8A | |
| 16.0 | 25.0 | 8.0 | 70.0 | GELÖTET | BB21075-8N | BB21078-8K | BB29019-8A | |
| 19.0 | 25.0 | 8.0 | 70.0 | GELÖTET | BB21125-8N | BB21128-8K | BB29022-8A | |
| 25.0 | 25.0 | 8.0 | 70.0 | GELÖTET | BB21225-8N | BB21228-8K | BB29023-8A | |
