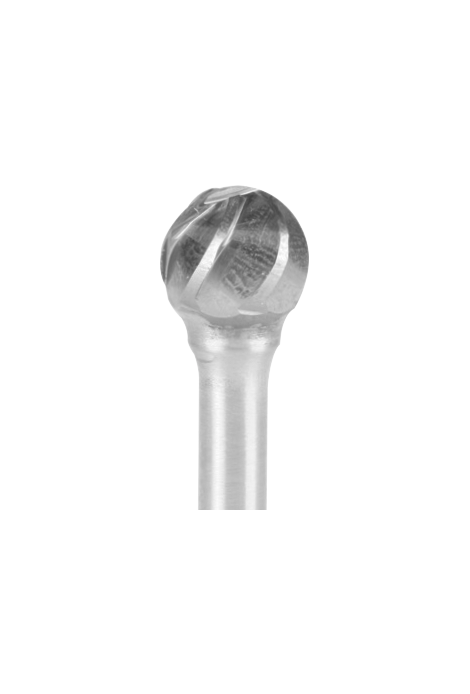

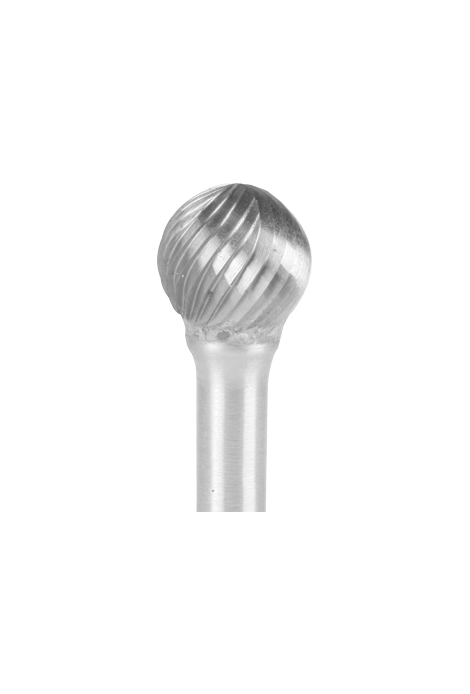

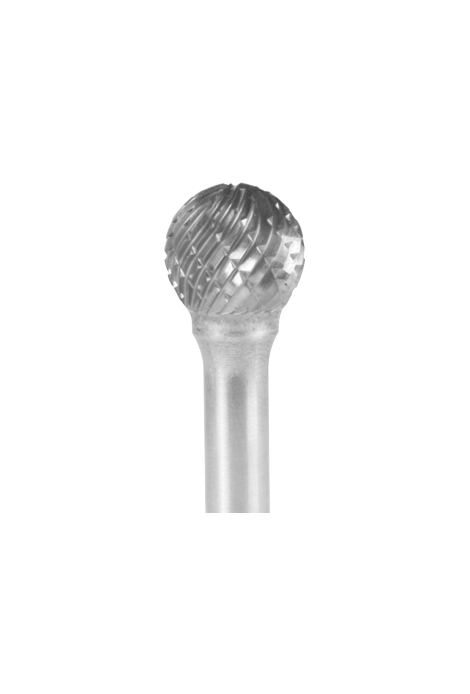

Sphérique forme D
|
3 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 2.0 | 1.8 | 3.0 | 38.0 | MONOBLOC | BD22773-3N | BD22774-3K | – | |
| 2.5 | 2.3 | 3.0 | 38.0 | MONOBLOC | BD22775-3N | BD22778-3K | – | |
| 3.0 | 2.5 | 3.0 | 38.0 | MONOBLOC | BD22800-3N | BD22803-3K | BD22856-3A | |
| 4.0 | 3.4 | 3.0 | 38.0 | MONOBLOC | BD22837-3N | BD22840-3K | BD22857-3A | |
| 5.0 | 4.7 | 3.0 | 38.0 | MONOBLOC | BD22850-3N | BD22853-3K | – | |
| 6.3 | 5.0 | 3.0 | 38.0 |
BRASÉ |
BD22825-3N | BD22828-3K | BD22858-3A | |
|
6 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 3.0 | 2.5 | 6.0 | 50.0 | MONOBLOC | BD22725-6N | BD22728-6K | – | |
| 4.0 | 3.0 | 6.0 | 50.0 | MONOBLOC | BD22726-6N | BD22729-6K | – | |
| 5.0 | 4.0 | 6.0 | 50.0 | MONOBLOC | BD22750-6N | BD22753-6K | – | |
| 6.0 | 4.7 | 6.0 | 50.0 | MONOBLOC | BD22450-6N | BD22453-6K | BD29036-6A | |
| 8.0 | 6.0 | 6.0 | 52.0 |
BRASÉ |
BD22475-6N | BD22478-6K | – | |
| 9.6 | 8.0 | 6.0 | 54.0 |
BRASÉ |
BD22500-6N | BD22503-6K | BD29038-6A | |
| 11.0 | 9.5 | 6.0 | 55.0 |
BRASÉ |
BD22525-6N | BD22528-6K | – | |
| 12.7 | 11.0 | 6.0 | 56.0 |
BRASÉ |
BD22550-6N | BD22553-6K | BD29040-6A | |
| 16.0 | 14.0 | 6.0 | 59.0 |
BRASÉ |
BD22575-6N | BD22578-6K | BD29042-6A | |
| 19.0 | 16.5 | 6.0 | 62.0 |
BRASÉ |
BD22625-6N | BD22628-6K | BD29044-6A | |
| 25.0 | 22.0 | 6.0 | 67.0 |
BRASÉ |
BD22675-6N | BD22678-6K | – | |
|
8 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 12.7 | 11.0 | 8.0 | 56.0 | BRASÉ | BD22562-8N | BD22565-8K | BD29041-8A | |
| 16.0 | 14.0 | 8.0 | 59.0 | BRASÉ | BD22600-8N | BD22603-8K | BD29043-8A | |
| 19.0 | 16.5 | 8.0 | 62.0 | BRASÉ | BD22650-8N | BD22653-8K | BD29046-8A | |
| 25.0 | 22.0 | 8.0 | 67.0 | BRASÉ | BD22700-8N | BD22703-8K | BD29047-8A | |
