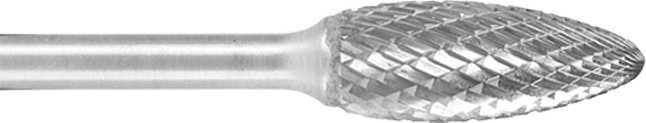

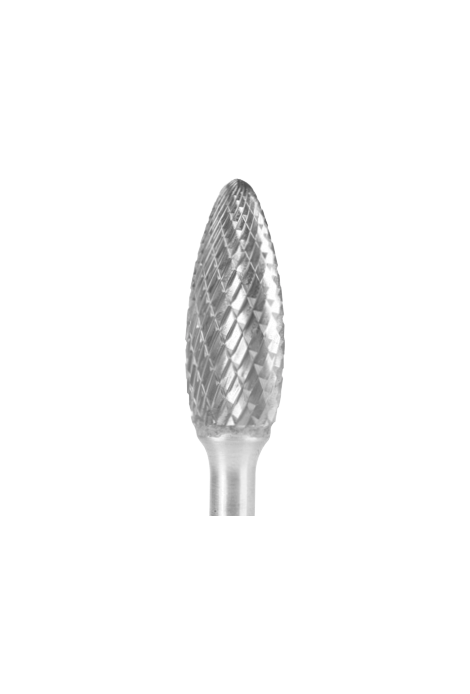

Flamme forme H
|
3 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 3.0 | 6.0 | 3.0 | 38.0 | MONOBLOC | BH24550-3N | BH24553-3K | – | |
| 5.0 | 9.5 | 3.0 | 38.0 | MONOBLOC | BH24600-3N | BH24603-3K | – | |
| 6.0 | 10.0 | 3.0 | 43.0 |
BRASÉ |
BH24601-3N | BH24604-3K | – | |
|
6 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 6.0 | 14.0 | 6.0 | 50.0 |
MONOBLOC |
BH24398-6N | BH24399-6K | – | |
| 8.0 | 19.0 | 6.0 | 64.0 |
BRASÉ |
BH24400-6N | BH24403-6K | BH24529-6A | |
| 9.6 | 19.0 | 6.0 | 65.0 |
BRASÉ |
BH24402-6N | BH24404-6K | BH24530-6A | |
| 12.7 | 32.0 | 6.0 | 77.0 |
BRASÉ |
BH24425-6N | BH24428-6K | BH24531-6A | |
| 16.0 | 36.0 | 6.0 | 81.0 |
BRASÉ |
BH24450-6N | BH24453-6K | BH24532-6A | |
| 19.0 | 41.0 | 6.0 | 86.0 |
BRASÉ |
BH24500-6N | BH24503-6K | – | |
|
8 mm
Tige
|
Dimensions mm | Numéro d’article | ||||||
|---|---|---|---|---|---|---|---|---|
| d1 | l1 | d2 | l2 | Type | Coupe 3 | Coupe 6 | Coupe 1 | |
| 12,7 | 32,0 | 8.0 | 77,0 | BRASÉ | BH24437-8N | BH24440-8K | – | |
| 16,0 | 36,0 | 8.0 | 81,0 | BRASÉ | BH24475-8N | BH24478-8K | – | |
| 19,0 | 41,0 | 8.0 | 86,0 | BRASÉ | BH24525-8N | BH24528-8K | – | |
